Temperature Sensor



Temperature Sensor

Epoxy NTC Sensor | Room Heater NTC Sensor | Green House NTC Sensor | Air Conditioner Temperature NTC sensor

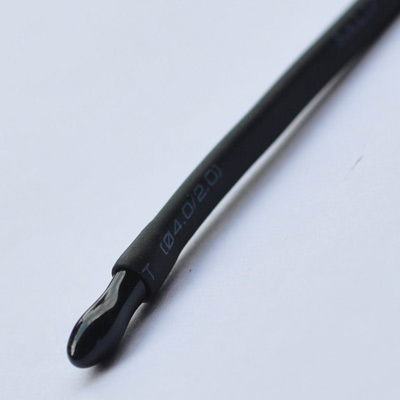

Epoxy type low temperature NTC Sensor
Model Number: Epoxy NTC Sensor
Usage: Temperature Sensor
Theory: Resistance Sensor
Output: Digital Sensor

Details

Product use:Air conditioning
●Working parameters:-40℃—105℃
●Withstand voltage:1500V
●Product parameters:R25=5KΩ±1% B:25/50=3470±1%
●Product description:Epoxy resin coating closure、UL2651#26PVC line、XH-2Y The glue seat
●Product features:Temperature measurement precise、Induction speed fast
●Customers can request the ordering various parameters and shape

Specifications
1. used in cold work environment , such as air-condition.
2. Epoxy Sealing prevent water, moisture
Epoxy type low temperature NTC Sensor
We can customize our sensors in different materials: epoxy, metal, stainless steel type and so on.
  Product use:Wall hanging stove
Product use:Air conditioning
Working parameters:-20℃—150℃
Withstand voltage:1500V
Product parameters:R25=10KΩ±1% B:25/50=3435±1%
Product description:G14、G18Tube clip、Black nylon thing、 UL3266#26 Irradiation irrelevant to、SM-2P The glue seat
Product features:Temperature measurement precise、Induction speed fast
Customers can request the ordering various parameters and shape.

Product use:Water heater
Specification
Working parameters:-40℃—125℃
Withstand voltage:1800V
Product parameters:R25=50KΩ±1% B:25/50=3950±1%
Product description:Copper plating nickel shell、UL3266 Irradiation line、SM-2P The glue seat
Product features:Temperature measurement precise、Induction speed fast
Customers can request the ordering various parameters and shape
Introduce:
Sensors used in hot water supply and water service equipment must be able to withstand hot, humid environments.
To prevent electric erosion, our sensors feature the optimal selection of sensor protecting tubes materials copper, chrome-plated copper, stainless steel and others. We can also provide liquid level sensors and flow sensors for other water-related applications.
NTC sensors used in hot water supply and water service equipment must be able to withstand hot, humid environments. Our NTC sensors provide outstanding moisture resistance.

Specification
Product use:Air conditioning
Working parameters:-40℃—105℃
Withstand voltage:1500V
Product parameters:R25=50KΩ±1% B:25/50=3950±1%
Product description:Copper plating nickel shell UL2651#26PVC ling XH-2Y The glue seat
Product features:Temperature measurement precise、Induction speed fast
Customers can request the ordering various parameters and shape
Introduce:
Usage of temperature sensors for refrigerators is twofold: Temperature sensing and controlling for the refrigerating part and freezing compartment. Defrost sensors, sensors made for ultra-low temperatures and temperature control sensors for coolers are used in the freezing compartment.
In the refrigerating part, various temperature control sensors are used to meet the demands for individual booth-based temperature control function.
Make safer NTC Temperature Sensor is widely used for home appliances, such as ice-box, air-conditioner system, refrigerator.
The wire materials can be made of PVC or TPE.
The outlook and wire length and dimension can be made based on customer required.
Model: 2k, 5k, R25 degree C, tolerance 1%~5%.

Specification
Product use:Water heater
Working parameters: -40℃—150℃
Withstand voltage:1500V
Product parameters:R25=50KΩ±1% B:25/50=3950±1%
Product description:Stainless steel shell、UL1332#26 Teflon line、SM-2R The glue seat
Product features:Temperature measurement precise、Induction speed fast
Customers can request the ordering various parameters and shape
Introduce:
Sensors used in hot water supply and water service equipment must be able to withstand hot, humid environments.
To prevent electric erosion, our sensors feature the optimal selection of sensor protecting tubes materials copper, chrome-plated copper, stainless steel and others. We can also provide liquid level sensors and flow sensors for other water-related applications.
NTC sensors used in hot water supply and water service equipment must be able to withstand hot, humid environments. Our NTC sensors provide outstanding moisture resistance.

Specification
Product use:Induction cooker、electric Perm bucket
Working parameters: -40℃—105℃
Withstand voltage:1500V
Product parameters:R25=100KΩ±1% B:25/50=3950±1%
Product description:Stainless steel shell、UL2651#26pvc line、End zion Baptist
Product features:Temperature measurement precise、Induction speed fast
Customers can request the ordering various parameters and shape

Specification
Product use:Induction cooker
Working parameters:-40℃—150℃
Product parameters:R25=100KΩ±1% B:25/50=3950±1%
Product description:Silica gel head sheath、UL1332#26 Teflon line、XH-2Y The glue seat
Product features:Temperature measurement precise、Induction speed fast
Customers can request the ordering various parameters and shape

Specification
Product use:Induction cooker
Working parameters: -40℃—150℃
Product parameters:R25=100KΩ±1% B:25/50=3950±1%
Product description:Silica gel head sheath、UL1332#26 Teflon line、XH-2Y The glue seat
Product features:Temperature measurement precise、Induction speed fast
Customers can request the ordering various parameters and shape

Specification
Product use:Electric kettle, coffee pot
Working parameters:-20℃—150℃
Withstand voltage:1800V
Product parameters:R25=100KΩ±1% B:25/50=3950±1%
Product description:Stainless steel shell、UL10362#26 Teflon line、187 terminals
Product features:Temperature measurement precise、Induction speed fast
Customers can request the ordering various parameters and shape

  Specification
Product use: soybean milk machine
Working parameters:-30℃—105℃
Withstand voltage:1800V
Product parameters:R25=100KΩ±1% B:25/50=3950±1%
Product description:Stainless steel components、Epoxy resin、UL2651#26、line SM-2PF The glue seat
Product features:Temperature measurement precise、Induction speed fast
Customers can request the ordering various parameters and shape

  Specification
Product use:Boiled water bottle
Working parameters:-20℃—125℃
Withstand voltage:1500V
Product parameters:R25=50KΩ±1% B:25/50=3950±1%
Product description:Aluminum shell、Epoxy resin、UL1332#26 line TJC3-2Y The glue seat
Product features:Temperature measurement precise、Induction speed fast
Customers can request the ordering various parameters and shape

  Specification
Product use:Rice cooker、Microwave oven
Working parameters:-40℃—200℃
Withstand voltage:1500V
Product parameters:R25=50KΩ±1% B:25/50=3950±1%
Product description:Translucent silica gel casing、UL1332 Teflon wire XH-2Y The glue seat
Product features:Temperature measurement precise、Induction speed fast
Customers can request the ordering various parameters and shape

  Specification
Product use:electric baking furnace、bread machine
Working parameters:-20℃—200℃
Withstand voltage:1500V
Product parameters:R25=100KΩ±1% B:25/50=3950±1%
Product description:Ring tin terminal, UL1332 # 26 teflon wire, stainless steel fan ear
Product features:Temperature measurement precise、Induction speed fast
Customers can request the ordering various parameters and shape

  Product introduction
MF5E series insulation film type NTC thermistor,It USES new production process, the novel structure, high reliability, good consistency, are widely used in temperature test, temperature control and temperature compensation and so on
Application scope
Computer、printer、Household appliances, etc
Characteristics
Insulation film packaging, burns should speed, high sensitivity; Good stability, high reliability; By good insulation; Resistance high precision; Use safety; Small volume, light weight, firm structure, easy for automation installation.
The main technical parameters
Rated zero power resistance value(R25):10KΩ~100KΩ;
R25 Allow deviation:±1%;±2%;±3%;±5%;
B value range(B25/50):3380K;
B value deviation:±1%;±2%;
Dissipative coefficient:0.7mW/℃(In the still air);
Hot time constant:≤5S(In the still air);
Working temperature range:-30~+125℃

1. Product introduction:
Epoxy Resin-Coated NTC Thermistors  NTC Thermistors
Small size, fast response, Resistance good consistency and interchangeability is strong, stable and reliable; Take location steps, easy automation welding;
Working temperature:-30 ℃ ~ + 125 ℃。
2. Application field:
electronic calendar, indoor thermometer with thermal resistance;
PCB, CPU, TCXO and temperature compensation with thermal resistance;
Automobile electronic with thermal resistance;
Household refrigerator, air conditioner, Electric water heater, whole bathroom;
Freezer.

Glass NTC thermistor type(axial type)
Glass NTC thermistor type (radial type)

  Product introduction
High precision, resistance tolerance to plus or minus 0.5%,
B value tolerance can reach 0.5%,
stable and reliable performance,
due to the optimization formula,
the use of special manufacturing process and reliable sealing structure, product average life can reach more than ten years.

Product features
1、The use of special process, the head size small
2、Induction speed and high sensitivity
3、Structure stability, high reliability
4、Resistance of high precision, good consistency
Application fields
Electronic thermometer, medical equipment, notebook batteries, mobile power supply, calendar, hair-dryer, building automation equipment, temperature sensors, etc.
Product features
Chip thermistor is a kind of resistance with temperature changes semiconductor chip ceramic components, negative temperature coefficient (NTC) thermal resistor is in some measure power electric resistance with a temperature rise of nonlinear a sharp fall in a thermal resistor.
●Small volume, no lead, suitable for high density SMT;
●The fine temperature coefficient, working temperature range:- 40 ℃— + 125 ℃;
●Can obtain higher B value;
●Size series:1005(0402) 1608(0603) 2012(0805) 3216( 1206)
●The end electrode structure using nickel silver tin three electrodes has good weldability and welding heat resistance
Application fields
Use:Semiconductor integrated circuit, liquid crystal display, the transistor and mobile communications equipment with quartz oscillators temperature compensation;Rechargeable batteries temperature detection;Computer of the microprocessor temperature detection;Temperature compensation to various circuit.
