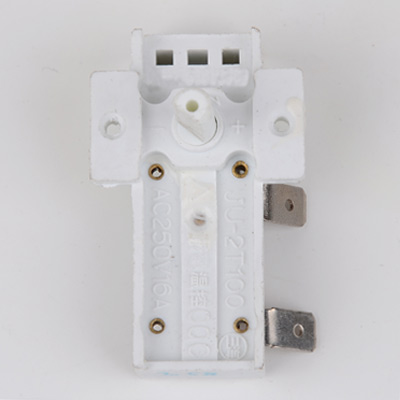

Oil Radiator Thermostat



Oil Radiator Thermostat

KST-C-001

Oil Radiator Thermostats | Oil-filled Heater Thermostats | oil heater thermostat | adjustable Snap-type thermostat

Oil radiator thermostat / oil heater thermostat as a Special adjustable Snap-type thermostat designed for precise temperature control, minimum temperature fluctuation and protection against any EMC interference. It bears temperature-compensation feature and large current application. Its plastic casing provides fuse mounting location.

Details

Oil Radiator Thermostats / Oil-filled Heater Thermostats
  Oil radiator thermostat / oil heater thermostat as a Special adjustable Snap-type thermostat designed for precise temperature control, minimum temperature fluctuation and protection against any EMC interference. It bears temperature-compensation feature and large current application. Its plastic casing provides fuse mounting location. It has fast response to temperature change and can carry heavy electrical current loading. Its response to temperature change is independent to amount of current loading. Shaft can be rotated 360°freely.
As a rotary switch can be mounted on top of the ST-360 so that using one shaft can control the temperature and heat-setting at the same time. Thus heater thermostat has been widely applied in the warm-air machine, fan heater, water heater, milk-heater, electric cooker, electric iron, electric heater.
Technical Parameters:
Designed temperature 0~90℃
Temperature control range 6~30℃ 6-35℃ 5-55℃ 0-70℃ 5-75℃ etc.
Current 16A
Voltage 250V AC
Temperature Control Precision ±3℃
Life 100,000 Cycles
Leakage Current 0.5mA
