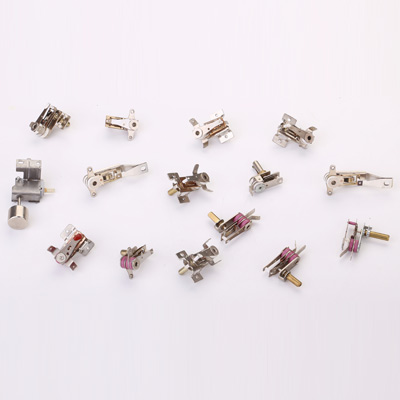

KST Thermostat



KST Thermostat

KST thermostat | Adjustable Thermostat | Twinkling temperature controller | temperature sensing element | thermal bi-metal

KST thermostat / Adjustable Thermostat / Twinkling temperature controller can be installed and fixed on the heating body or shelf through rivets or aluminum board. Through conduction and radiation, it can sense the temperature. The installing position is free, and it has fine temperature controlling result and little magnetic interference.

Details

KST Thermostat Introduce:
  KST thermostat / Adjustable Thermostat / Twinkling temperature controller can be installed and fixed on the heating body or shelf through rivets or aluminum board. Through conduction and radiation, it can sense the temperature. The installing position is free, and it has fine temperature controlling result and little magnetic interference. The compensation temperature controller can control the temperature and minish the fluctuation of temperature through absorbing self-heat. Adjustable thermostat / KST thermostats are designed for High- power loading appliance with maximum current of 16A. Thermostat is operating by sensing ambient heat and the heat transmit through the metal mounting plate. It has various mounting design customized for different appliance upon requirements.
KST thermostats / Twinkling temperature controller are used widely in home appliance such as Electric Irons, Electric Oven, Electrical Frying Pan, Mill warmer, Convection Oven, Light-wave Oven, Electric Heater, Electric Cooker and other electrical temperature control, thermostatic purposes, etc.

KST Thermostat Working Principle
As the use of thermal bi-metal temperature sensing element, when the temperature rose to a certain value, the thermal double gold bending deformation, and through actions to promote energy storage shrapnel shot, make the contact bounce; when the temperature drop, the thermal double sequin restored contacts also will be restored to its original state, to achieve the purpose of on-off circuit. With stable performance, adjustable temperature, temperature control, high precision, reliable action altogether, action temperature increase is small and high reliability, long life, less interference to radio and other advantages.
This section also can be installed thermostat dump switch, make sure electrical appliances in the non-normal conditions of security.
Technical Specification:
The Electrical Parameter: 125V/AC 15AMP 250V/AC 12AMP
Disconnect the temperature accuracy: ± (4 ~ 5%)℃;
Temperature Setting Range: 0-300℃
Max. Service Temperature: 300℃
Ambient Temperature: T250 ℃
Temperature Allowable Error Range: ±5%℃
Reset Temperature: 5-300℃
Connection method: a. Plug terminal 250 # / 187 # (0.8mm thick and curved 30°, 45°, 90° optional);
b. terminals: M4, M3 (optional);
Thermostat-Axis Rotation Angle: 150°, 180°, 210°, 250°, 270°, 300°, 310°
The Electrical Strength: 2000VAC/0.5mA/1min the pressure test, no flashover, no breakdown
The Contact Resistance: ≤ 50mΩ
Insulation resistance: > 100mΩ;
Service Life: > 100,000times
Size & Contour: the outline dimension may be changed according to the customer’s requirements
Grounding: Through the thermostat on a mounting plate or mounting rivets and electrical enclosure parts are connected.

Usage & Installation Note:
1.
The thermostat and the rotation angle of the shaft sizes according to customer's demand to set up.
●Disconnect the thermostat temperature characteristic curve and finished with thermostat according to customer matching the sensing current reaches the temperature control purposes, and can greatly reduce the temperature may be.
●This product can be designed with increase, remote temperature control, thermal compensation.
●Terminal-inch size and direction varied, with customer arbitrary choice.
●For the convenience of customers to install the thermostat, the thermostat can also riveted a fixed mounting block (piece), but also has the function of heat conduction effect.
2. The installation notes:
●During installation, the thermostat porcelain pieces, thermal bi-metal other components should be free from external forces;
●Connected to the thermostat wires to the terminals: 5A is recommended as 0.5-1mm2; 10A is recommended for the 0.75-1.5mm2;
●If customers need to re-adjust the temperature on the thermostat, you can adjust the thermostat inside the tuning screw clockwise adjustment to lower the temperature, on the contrary increased.

Why Choose As your Partner:
●Widely applied for temperature control of dry and steam electric iron etc.
●Guarantee safe using and good after sale
●Bi-metal cling to the heat part, sensitive feel ,steady control and low differential
●Contact act quickly and little electromagnetism infection
●Firm configuration ,abundant types and flexible fixing position
