KSD304 Thermostat



KSD304 Thermostat

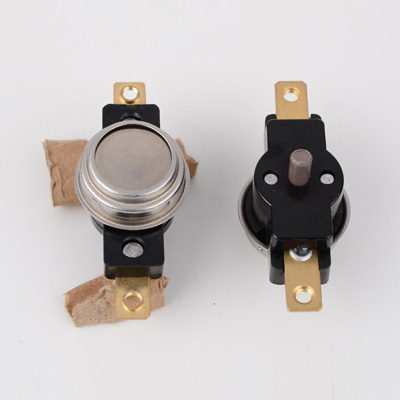

KSD304-001R

3/4"Bimetallic Thermostat | Temperature Controls | thermostat | 1/2"bi-metal thermostat | KST thermostat | mechanical thermostat | defrost thermostat | digital thermostat | programmable thermostat | touchscreen enabled thermostats | thermostat 3/4"

LANCOR leads the industry in innovative thermostat function and design for household appliance and industrial appliance. LANCOR offers a variety of features such as 1/2"bi-metal thermostat, 3/4"bimetallic thermostat, KST thermostat, mechanical thermostat, defrost thermostat, digital thermostat, programmable thermostat, touchscreen enabled thermostats and related temperature sensing products.

Details

3/4"imetallic Thermostat / Temperature Controls
  LANCOR leads the industry in innovative thermostat function and design for household appliance and industrial appliance. LANCOR offers a variety of features such as 1/2"bi-metal thermostat, 3/4"bimetallic thermostat, KST thermostat, mechanical thermostat, defrost thermostat, digital thermostat, programmable thermostat, touchscreen enabled thermostats and related temperature sensing products. As big current temperature control, 3/4"thermostat is a thermal protector, its action depends on the core component, the bi-metal disc will instant snap when it reaches certain temperature.
Thermostat 3/4"(19mm) is quality & ideal thermal sensor, and the KSD302 series of 3/"bimetallic disc thermostats as high current heater thermostat offers proven reliability in a versatile, cost-effective design. The snap action of the temperature sensing bi-metal disc provides high-speed contact separation, resulting in exceptional life characteristics. These are available in Normal open (NO) or Normally Closed (NC) versions.
A wide variety of terminal and mounting configurations are available for maximum design flexibility. This unsurpassed flexibility and time proven reliability, has made thermostat 3/4"the most popular and widely applied thermostat in the major appliance and heating/air conditioning industries such as welding machine, ending machines, dryers, unit heaters, tabletop appliances, and instant water heater machine.

Technical Parameter Ratings:
Electric Parameters AC277V 25A / AC600V 16A / AC120V 25A / AC240V 25A;
Loading up to 45Amp at 240VAC
Operating Temperature range a) -30℃~270℃ for ceramic base
b) Bakelite base: -30℃~150℃ for auto reset, 30℃~150℃ for manual reset
Temperature Differential 8℃~45℃(Except for manual reset)
Tolerance for operating temperature a)Auto reset: Min: ±3℃, Standard:±5℃
b)Manual reset: Min: ±4℃, Standard:±5℃
A variety of terminals and mounting flanges are available to meet the installation requirements
Available with both auto reset and manual reset & one-shot type
Available with both open on rise and close on rise type
Available with both single pole single throw (SPST) type and single-pole double-throw (SPDT) type
Configurations of built-in and exposed bimetallic disc are available
Approval UL, CQC, TUV ,VDE, CUL

Thermostat's Features and Benefits:
●Bi-metallic disc-high current insensitive
●Available with thermostat of manual reset SPST or automatic SPDT switch configurations.
●Snap action disc thermostat for high speed contact separation.
●A wide variety of lead wire and terminal options provide excellent design flexibility
●Available with Normal Open or Normal Closed contact position.
Applications for Thermostat:
●Water Heater Thermostat
●Dishwasher Thermostat
●Boilers Thermostat
●Clothes Dryer Thermostat
●Industrial Heater Thermostat
●Washing Machine Thermostat
●Air-conditioning Thermostat
●HVAC Thermostat
●Welding Machine Thermostat

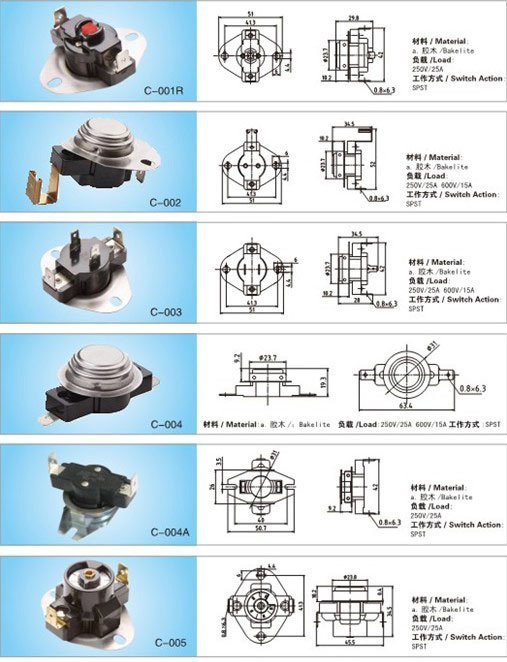

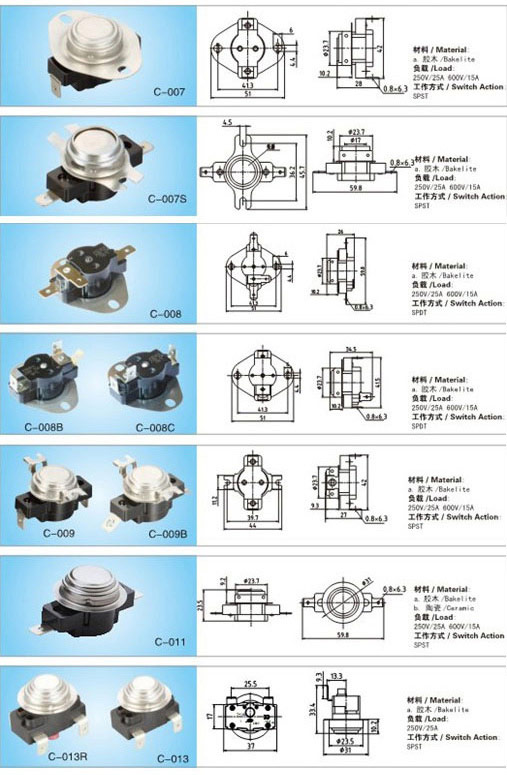

3/4"Thermostat Drawing:
