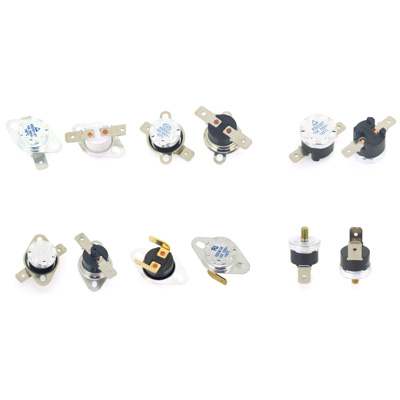

KSD301 Bimetallic Thermostat



KSD301 Bimetallic Thermostat

Bimetal Thermostat | Thermal Cutouts | Temperature Control | Current Cutout | bimetal cutouts | temperature limiters | thermal fuses | bimetal disc thermostats


Details

  Electrical Rating : 16A 125V AC (Resistive Load)
10A 250V AC (Resistive Load)
16A 250V AC (Resistive Load)
Operating Temp : 50~175 ℃
Temp. Tolerance : Operating Temp ± 3K,±5K
Heat Durability : 220 ℃ Max (PPS)
Circuit Resistance : 50 MΩ Max
Insulation Resistance : 100M Ω Min at DC 500V
Dielect ric Strength : AC 1000V for one Minute or
AC 1800V for one Second
Operating Life : 100,000 Cycles (16A125V / 10A 250V AC)
10,000 Cycles (16A 250V AC)

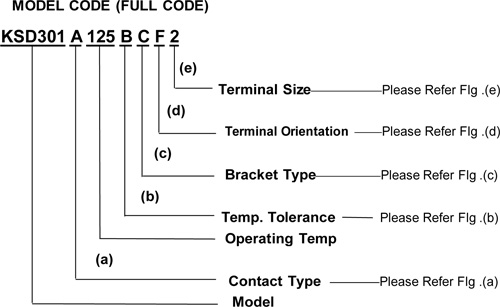

HOW TO ORDER



(a) CONTACT TYPE : (*=STANDARD)

A = Contact Opens When Temperature Rises to Set Point (Normally Closed)
B = Contact Closes When Temperature Rises to Set Point (Normally Open)
M = Manual Reset

(b) TEMP. TOLERANCE:
Grade A *B
Action ± ℃ 3 5
Reset ℃ 4 6

The Grade of Temp. Tolerance is "A",when the Operating Temp is Less than 105 ℃
The Grade of Temp. Tolerance is "B",when the Operating Temp is over than 106 ℃

(c) BRACKET TYPE :

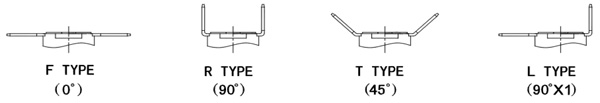

(d) TERMINAL ORIENTATION :

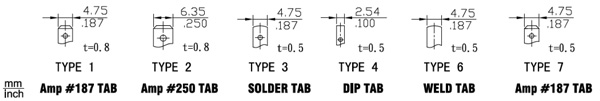

(e) TERMINAL SIZE :

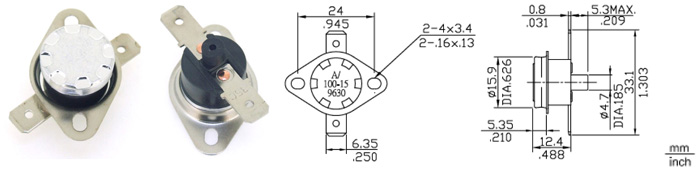

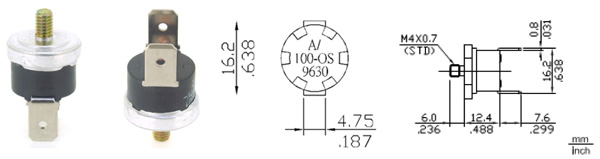

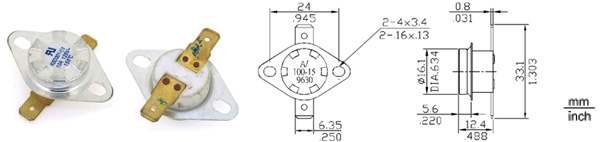

KSD301A-CF2

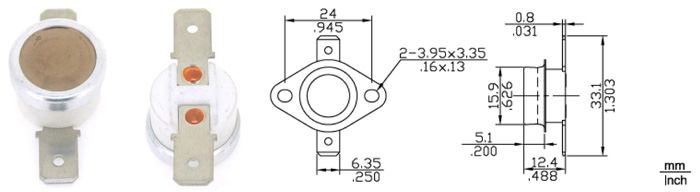

KSD301A-CT2 (4 POST)

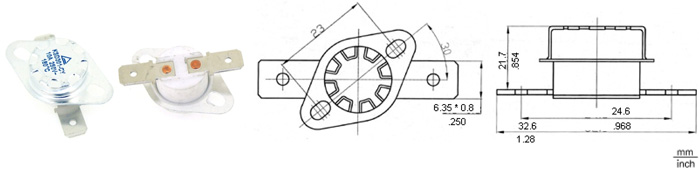

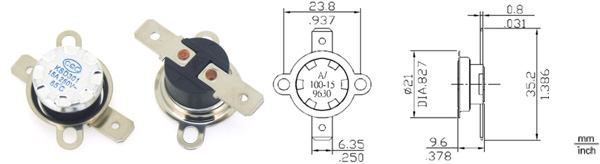

KSD301A-SF2 (LOOSE BRACKET)

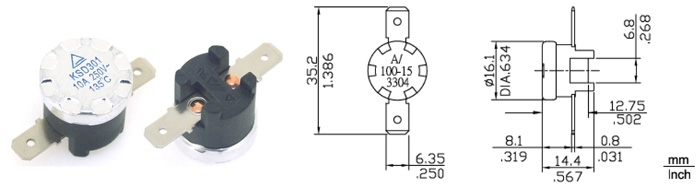

KSD301A-RF2-A

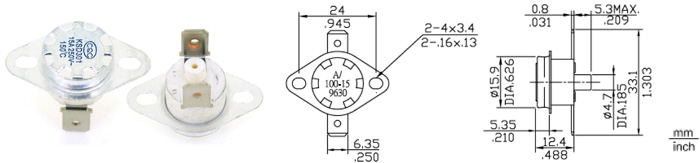

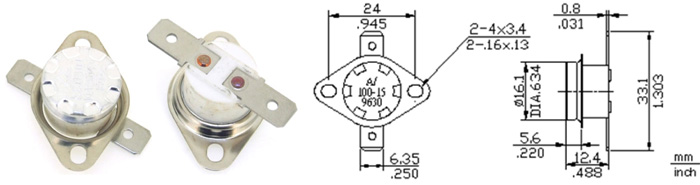

KSD301A-BF2

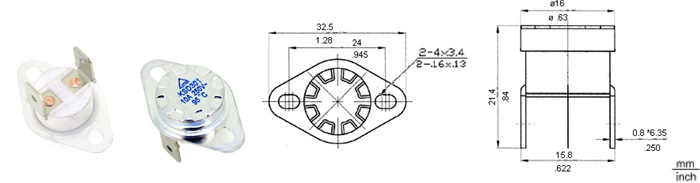

KSD301A-PF2 (4 POST)

KSD301A-OF2 (LOOSE BRACKET)

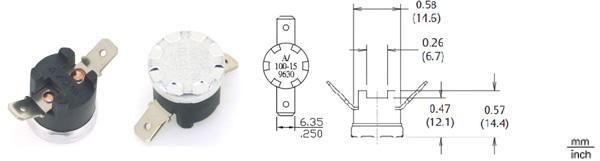

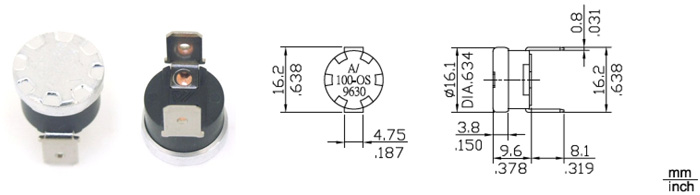

KSD301A-CR1

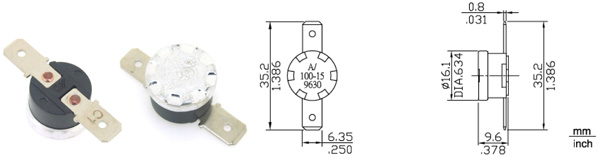

KSD301A-BR2 (FIX BRACKET)

KSD301A-BF2-30 (FIX BRACKET)

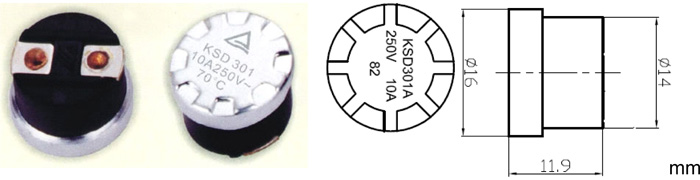

KSD301A-OF2-M (MANUAL RESET)

KSD301A-BF2-M (MANUAL RESET)

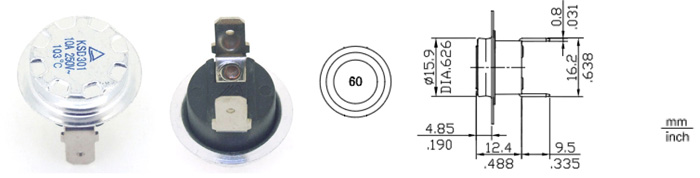

KSD301B-BF2-V (OPEN CAP)

KSD301A-C(NO BRACKET&TERMINAL)

KSD301A-DR1(FIX ROUND BRACKET)
