Rotary Switch



Rotary Switch

Oven Selector Switches | cook switches | Electric Oven/grill Switch | rotary oven switch | oven switch | selector switch | Hotplate Switch | rotary switch | oven rotary switches | stove switch

As Oven Switch (Electric Oven/grill Switch) Manufacturer, we can supply a range of Oven Selector Switches to control oven functions such as top heat, bottom heat, fan, oven, plate hob, household appliances, mechanical equipment, etc. Our rotary switch has function of regulating the shelf location. Used in. Many customer-specific variants are possible.

Details

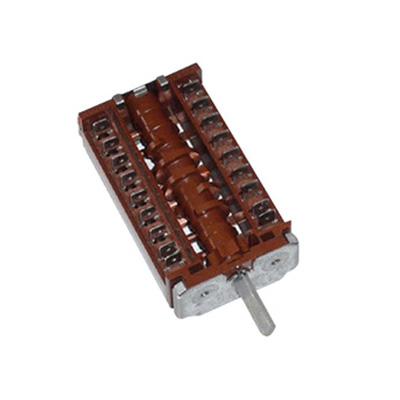

Oven Rotary Switch
As Oven Switch (Electric Oven/grill Switch) Manufacturer, we can supply a range of Oven Selector Switches to control oven functions such as top heat, bottom heat, fan, oven, plate hob, household appliances, mechanical equipment, etc. Our rotary switch has function of regulating the shelf location. Used in. Many customer-specific variants are possible.
In most cook switches / hotplate switch, the temperature and other functions of stove switch are generally controlled by two separate switches. The required function is set using the Selector Switch. We are pleased and prepared to develop a customized version to suit any appliances with 4, 5, 6, 7, 10, 11 positions, and our oven rotary switches have many different current connect way each position so you should send us about your drawing.

Specification
material PA,PF
color black, red
function 4,5,6,7,8,9,10,11(as customer’s requirement)
working voltage 250V , 380V
overload current 16A , 32A
working temperature T150°C
life 10000 times
rotary angle 360
certification CE,TUV, Rohs
