Power Metallugry Bushing



Power Metallugry Bushing

Powder Metal Sinter | Powder metallurgy | Power Metal Sinter bushing | Metal Powders | P/M products

Metal Powders and P/M products is the ideal process of blending fine bronze or iron / stainless steel powder, pressing them into a desired shape or form (compacting), and then sinter under high temperature, and oil is soaked into the homogeneously spreaded tiny pores of the metal under vacuum.

Details

Powder Metal Sinter Briefing:
Metal Powders and P/M products is the ideal process of blending fine bronze or iron / stainless steel powder, pressing them into a desired shape or form (compacting), and then sinter under high temperature, and oil is soaked into the homogeneously spreaded tiny pores of the metal under vacuum. The powder metallurgy process generally consists of four basic steps: powder manufacture, powder blending, compacting, and sintering. Compacting is generally performed at room temperature, and the elevated-temperature process of sintering is usually conducted at atmospheric pressure. Optional secondary processing often follows to obtain special properties or enhanced precision.
Power Metal Sinter bushing Advantage:
The greatest advantage of the powder metallurgy parts process is the precise control it gives engineers over materials and their properties. From powder selection through purchasing to mixing, each blend is under strict quality assurance.
Powder metallurgy is flexible. With nearly unlimited combinations of properties, it is likely that a powder metal part can be designed to fit your application. Often, one P/M part can replace two or more existing parts, giving greater strength to the assembly while reducing inventory and manufacturing costs. The powder metallurgy process offers a lower cost per unit (due to mass production), net or near-net shape of finished pieces, and less material loss than conventional machining.
Power Metal Sinter bushing Performance:
Chemical Composition: CuSn6Zn6Pb3,Cu90Sn10,CuSn6Zn6Pb0,Fe,Cu-Fe
Working Temperature: Between -100 with +200
Density & Gravity: 6.4-7.5g/cm3
Oil Impregnation Rate: 18% - 23%
Graphite content Rate: 1% - 3%Max
Hardness: HB30-75 for Bronze : HB 35-150 for Iron
Powder Metallurgy / powdered metal components applications:
   Household Appliances
   Automotive
   Bio/Medical Equipment
   Electronics
   Hand Tools
   Industrial Motors
   Lawn & Garden
   Recreation & Leisure Products

Why choose LANCOR as your manufacture of powder metallurgy:
The quality of our product and the safety of our employees depend upon well-maintained equipment and safe surroundings. In accordance with QS standards, Micro Metals maintains an aggressive and documented preventive maintenance program.
This computerized system tracks all past maintenance and repair records and schedules work orders for future routines. In addition, it tracks the use and economic order quantities of consumables.
LANCOR is a quality outsourcing company that delivers total solutions for your Powder Metallurgy and other manufacturing projects, we are prepared to supply our product to both domestic and global customers.

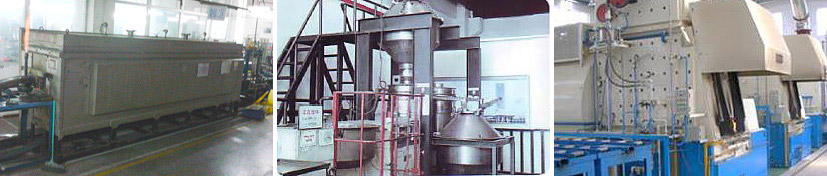

Main Equipment of Metal Powders and Powder Metallurgy Products:
